DPM III XI

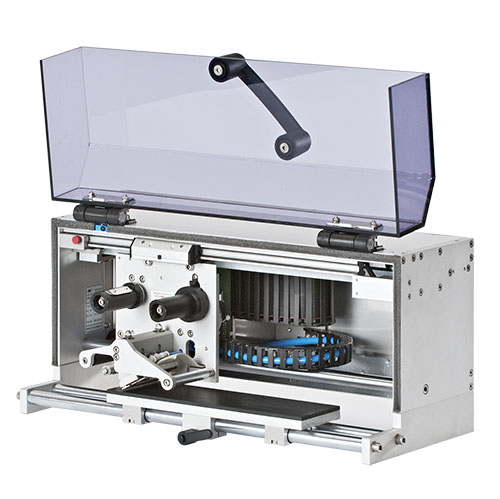

DPM III XI Series
The intermittent working DPM III XI is a high-resolution direct printing mechanism for installation in cycled packaging machines in all application areas, such as medical technology, pharmaceuticals industry and food industry. Thanks to its compact design, the DPM III XI can be integrated in any position in packaging machines, foil and pillow bag systems, as well as in product marking systems. For the intermittent process printing is executed while the foil is standing still. The DPM III XI has different print widths and lengths which enables a printable surface of 128 x 630 mm. Without any difficulties applications with large-scale printing content or marking of different small products can be realised with DPM III XI by using the function 'print several columns'.
  • More than 20 different versions available
  • Cable outlet above or on the side
  • Left and right hand versions
  • Ribbon saving
  • Print speed up to 450 mm/s
  • Flexible labelling from external data sources
1.1 Label printer DPM III XI
Print resolution dpi 300 300 300
Print width up to mm 53,3 106,6 128
Print speed up to mm/s 450 450 400
Ribbon Lenght up to M 450 450 450
Power supply 115 - 230 VA 50/60 Hz
